AmScope SW-2T24X Trinocular Stereo Microscope, WH10x Eyepieces, 10...

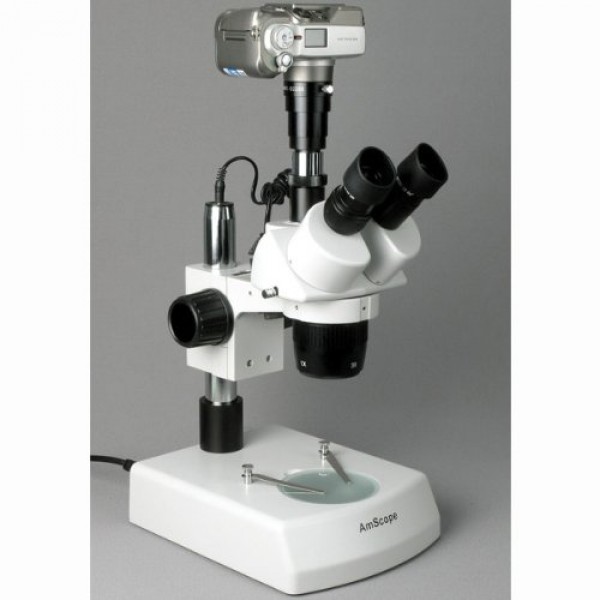

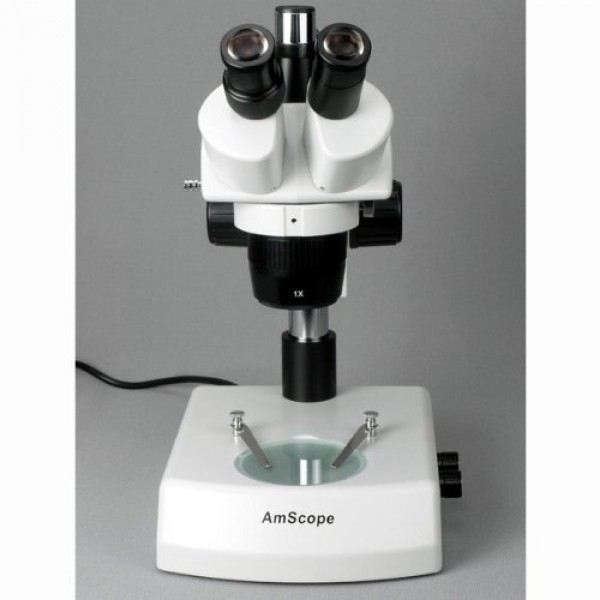

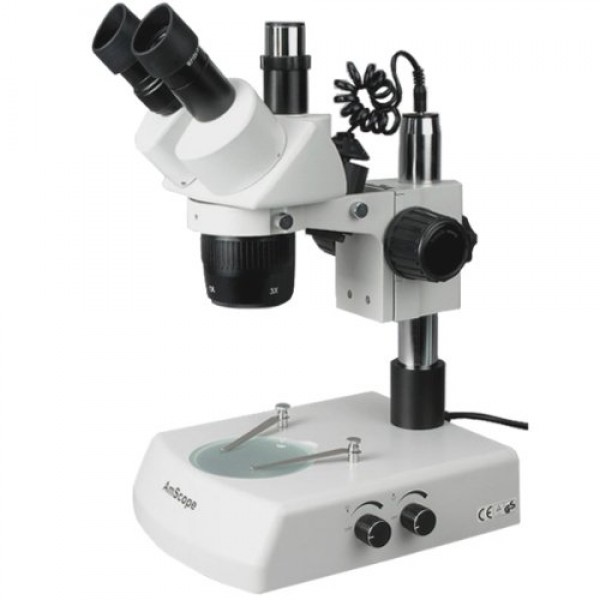

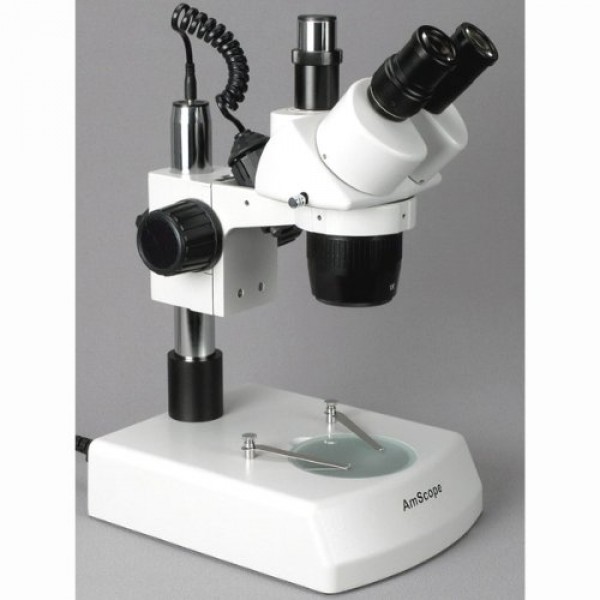

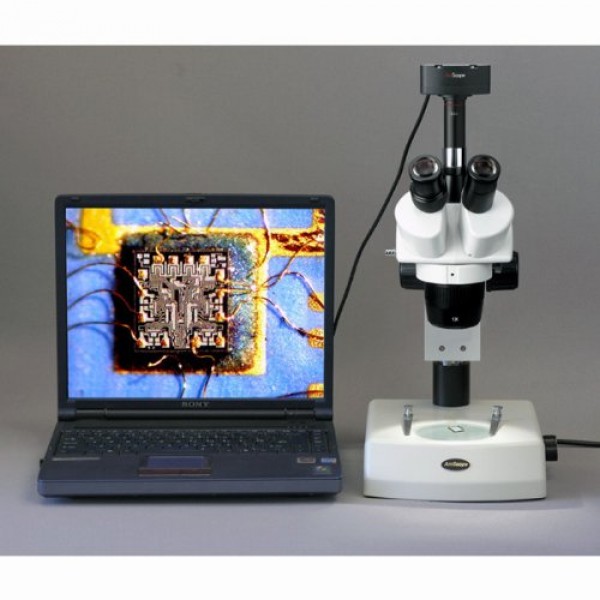

The AmScope SW2T24X trinocular stereo microscope head has a pair of 10x20mm widefield high-eyepoint eyepieces, a 2x/4x objective, and a 0.5x Barlow lens. The microscope head has a 3" O-ring style mounting ring. The trinocular viewing head has an interpupillary range of 47 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The vertical trinocular port can be used as a C-Mount or 23mm photo port (camera sold separately). The WF10x20mm super-widefield high-eyepoint eyepieces combine with the 2x/4x objective to provide 10x, 20x, and 40x magnification, and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope includes a 0.5x Barlow lens that can be added to the objective to decrease the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, dioptric adjustment accommodates individual eye-strength differences, and eye guards ensure comfortable viewing. The optical glass lenses provide sharp images, and are fully-coated to ensure high-resolution images. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.

The microscope has rheostat-controlled upper (episcopic) illumination that reflects light off the specimen for enhanced visibility of opaque specimens, and lower (diascopic) illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. A rheostat controls light intensity. A frosted stage plate allows light to pass through from below with transparent specimens, a reversible black and white stage plate provides contrast with light- and dark-colored specimens, and stage clips secure the specimen during viewing. The 15W halogen light source provides bright light in a concentrated path. The pillar-style stand has bilateral coarse focus to ease use for left- and right-handed users. All metal construction is durable and the enamel finish is stain-resistant.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.

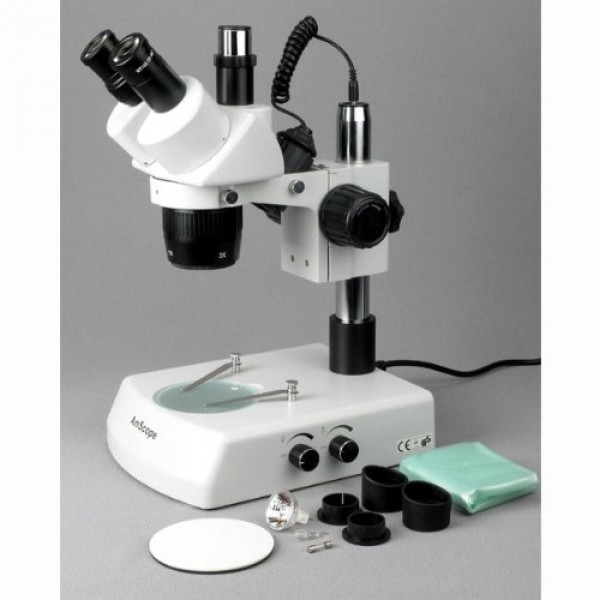

What's in the Box?

• Trinocular stereo zoom head with 2x/4x objective
• WH10x eyepieces, one pair
• 0.5x Barlow lens
• Dual-illumination pillar stand with focus rack
• Stage clips, one pair
• Eye guards, one pair
