Upgrade 7000mW Laser Engraver CNC 3018 Pro-M Engraving Machine, Yo...

Upgrade 7000mW Laser Engraver CNC 3018 Pro-M Engraving Machine, Yofuly GRBL Control DIY Router Kit with Protected Board, 3 Axis PCB PVC Milling Machine, Working Area 300x180x45mm

☛Assembling video: https://youtu.be/ra5_0ELid70
☛Software and instructions download: https://my.pcloud.com/publink/show?code=kZ8S1hkZczwLfb2NKVX1D7WhK10wqp9De7WV

Control board function:
1. GRBL1.1f firmware, stable performance.
2. Off-line engraving (optional off-line module), off-line knife matching and engraving.
3. New upgrade limit switch, heat dissipation fan and other functions.
4. Supporting 2P/3P laser, PWM/TTL signal control, power 0-100% adjustable.
5. Spindle support PWM power 0-100% adjustable.
6. Stepping motor overcurrent protection to avoid damage, upgrade DRV8825 drive, performance far better than A4988.
7. Laser is directly imported into picture sculpture, without programming, without design, simple and convenient.

Specifications :
Effective Engraving Area: 300 x 180 x 45mm(11.8 x 7.1 x 1.8")
Frame Size: 400 x 330 x 240mm(15.7 x 13.0 x 9.4")
Frame Material: Aluminum+PF
Z-Axis Component Material: ABS
Spindle: 775 motor, 12V; 24V, 10000r / min;
Softwear: GRBL control systems/ Lasergrbl control systems
Rated power: 60W; Maximum power: 120W
Power Supply : AC 24V 5.6A
Stepper Motor : 12v-24v, Torque 0.25N/M, Current 1.33A, fuselage length 34MM
Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10
Drill Bits: Tip 0.2 mm, 20 degrees, Diameter 3.175 mm
Clamps: 4 pcs, hold the thickness of 0-30mm
Laser Head : 7000MW, 12v, 450nm TTL PWM Control
Usage : can be engraved plastic, wood, acrylic, pvc, pcb, aluminum, wood or the like material.

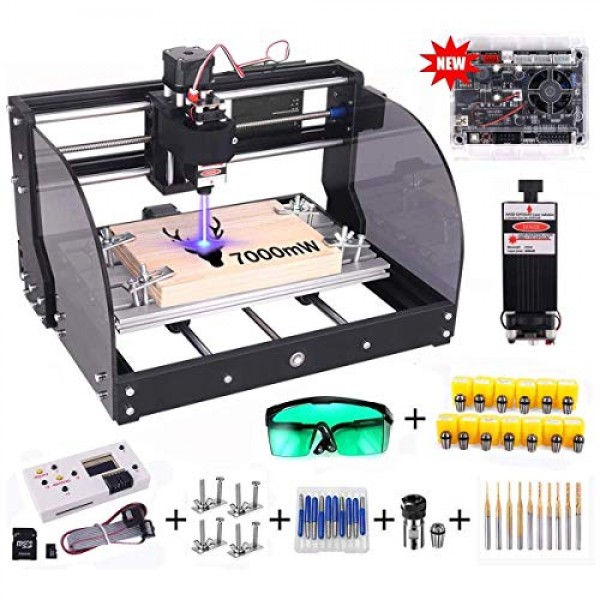

Package Include:
1* DIY CNC Router Kit
1* 7000mw Laser Head
1* Offline controller
4* Clamps
1* Laser Goggles
1* 5mm Extension rod
1* ER11 collet kit
10 * CNC Router Bits
1* Manual

• New Version - CNC 3018 Pro-M is an upgraded version of 3018. We have improved the installation mode of the lower plate, easy to install , stable structure ,take only about 20 minutes to assemble. If you want to know more about the product, you can see the☛ https://youtu.be/ra5_0ELid70
• 3018PRO-M Upgraded Control Board - Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage, ensure long working time continuously.
• GRBL Control CNC Engraving Software: GRBL 1.1; Working area: 30x18x4.5cm; Spindle: Model 775, 24V:10000r / min; Supported System: Windows XP / Win 7 / Win 8 / Win 10. -- Enhanced spindle drive, can support spindles with a speed of 20000r / min (notice: the package only come with 10000r / min spinlde)
• 7000mW violet laser module - High precision - Laser focus < 0.1mm, High laser engraving power and long-term available. Can be read directly in JPG, BMP, SVG. Comes with a pair of safety goggles to protect your eyes from laser injury.
• Offline Controller ：Coming with an offline controller, no need to connect to the computer, just adjust X, Y, Z axis location on your offline controller ; no need to download files, the engraving file can be directly accessed.
