Genmitsu LE5040 CNC Laser Engraver Machine with 5500mw Laser Modul...

Genmitsu LE5040 CNC Laser Engraver Machine with 5500mw Laser Module for Carving Cutting Engraving & DIY Logo Picture Marking, 2-Axis XY Working Area 50 x 40cm

Overview

If you're looking for a cost-effective desktop CNC laser engraver that lands somewhere between affordable and
entry-level, the Genmitsu LE5040 CNC Laser Cutter is as good as it gets. With its features, build quality, and great
performance, it's one of the best that you will find on the market at this price.

Specification

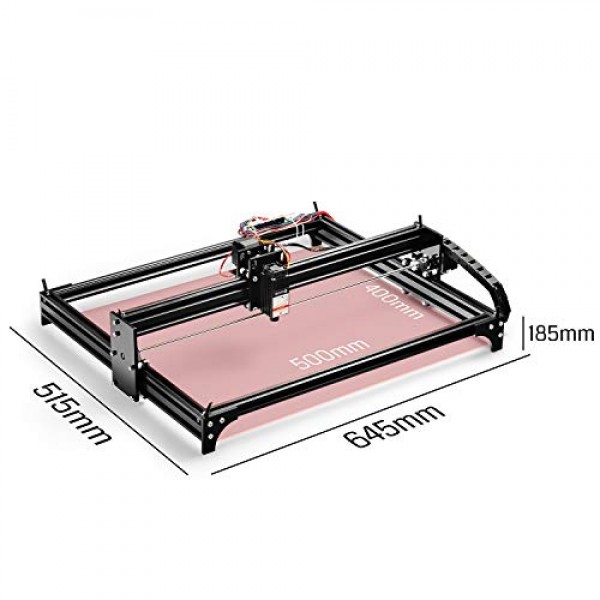

Frame Size: 645 x 515 x 185mm(25.4 x 20.3 x 7.3")
Working Area: 500 x 400mm(19.7 x 15.7")
Laser Power: 5.5W, support manual focus
Max Travel Speed: 10000mm/min
Power Supply: DC 12V/5A
I/O: mini USB
Stepper Motor: 42 stepper motor
Software: Lasergrbl, Candle, Compatible with all GRBL software
Supported OS: Windows XP, Windows 7, Windows 8, Windows 10

Download

http://s3.amazonaws.com/s3.image.smart/download/101-60-LE5040/CD.zip
http://s3.amazonaws.com/s3.image.smart/download/101-60-LE5040/Genmitsu_LE5040_User_Manual.pdf

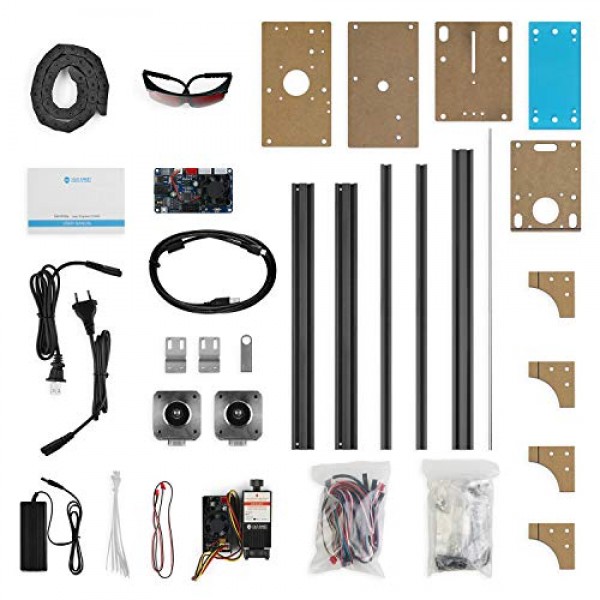

WHAT'S INCLUDED?

1 x LE5040 CNC Laser Engraver Machine(Parts need to be assembled)
1 x Goggles
1 x User Manual

• High Efficiency: Genmitsu LE5040 delivers a position accuracy of 0.1 mm, with low noise and a top cutting speed of 10000mm/min, which is five times faster than 3018 with laser module, so you can always get the finely detailed patterns and precision needed for your projects.
• Applicable Materials: Capable of handling a variety of materials such as leather, wood, MDF, fabric, cardboard, bamboo, anodized aluminum, etc. It's easy to cut and engrave designs with Genmitsu LE5040.
• Large Working Area: This machine offers a cutting area of 500 x 400mm (19.7 x 15.7"), making it the ideal CNC laser engraver for everything from home use to starting a small business.

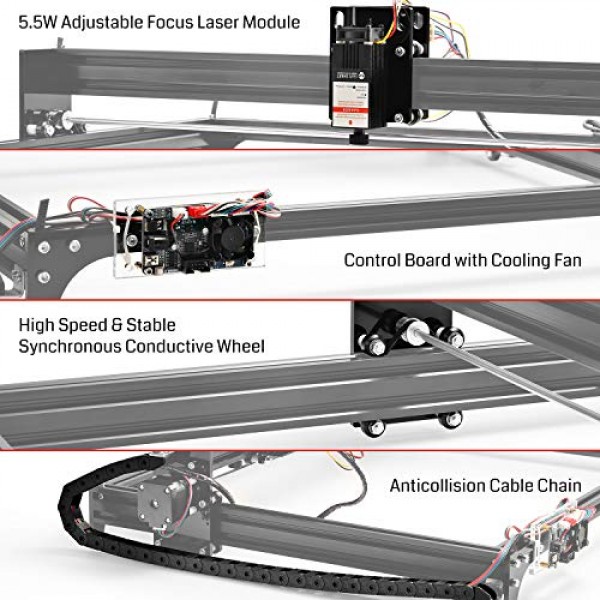

• Excellent 5.5w Laser Module: The laser module adopts an intelligent feedback control circuit, external ACC constant current driving Mode. Featuring with reliability, high stability, high efficiency, low noise, and excellent laser beam quality.
• Software: The LE5040 uses LaserGrbl, high performance, open-source software for controlling movement, and runs on Arduino. Its dependability and simplicity make Grbl an industry standard, so there's no lack of support and resources available when you get stuck.
