Fowler Full Warranty Stainless Steel Frame Euro-Cal IV Electronic Caliper, 54-100-332-0, 12" Maximum Measurement

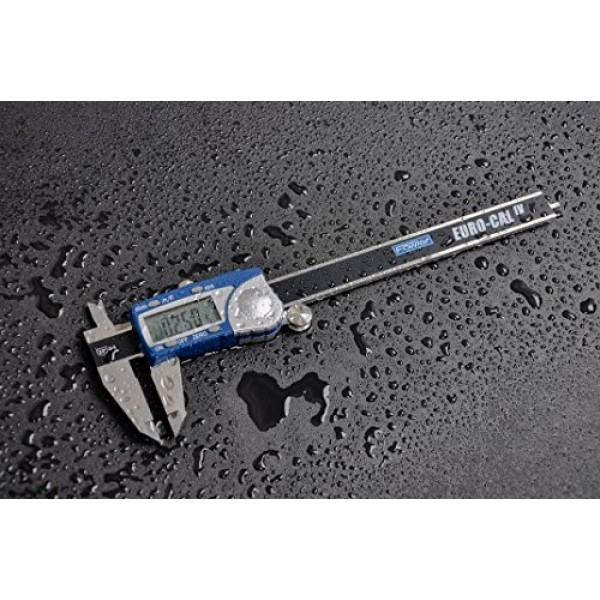

The Fowler Euro-Cal IV digital caliper has an accuracy of +/-.0015"/.03mm with 0.0005"/0.01mm resolution, with fractions in 1/64" increments for precise measurements, and it has a hardened stainless steel frame. The digital, single-value readout LCD shows inch, metric, and fractional units for versatility when measuring. It has a zero setting and absolute and incremental measuring modes for taking intermediate or differential measurements and direct metric/inch conversion. The knurled lock screw holds the sliding jaw in position and helps ensure a consistent measurement. The hardened stainless steel frame offers corrosion resistance and long life. The caliper is rated to IP54 level of protection against dust and splashing water. This caliper is used for measuring inside dimensions (ID), outside dimensions (OD), depth, and step. It comes with a fitted case. This product has 1 year warranty offered by Fowler High Precision. If you experience any problem contact Fowler directly for warranty claims.

Digital calipers are measuring instruments commonly used for inspection in manufacturing to provide the precise measurements of an object. A pair of jaws attached to a long beam with a marked scale is used to take inside, outside, and step measurements. An additional depth probe slides along the beam to take depth measurements. One jaw is fixed to the end of the scale, while the other jaw slides along it with gearless precision to take measurements. The reading is electronically generated and displayed on a digital, high-resolution screen as a single value. Digital calipers can take differential measurements that are used to determine the difference in measurements between two objects, by zeroing the display at any point along the scale. Some digital calipers can switch between standard and metric units, and some can output readings to a computer or printer for recording measurements. Compared to dial calipers, digital calipers provide measurements that are faster, easier, and more error-free, but they are more fragile mechanically and electronically, and do not resist coolant well. Vernier calipers are more durable than digital calipers because they do not have internal moving parts, but they can be more difficult to read. Digital calipers are commonly used in fields such as metalworking, mechanical engineering, machining, carpentry, and medicine.

Fowler, an American company, manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.
What's in the Box?

· Fowler Euro-Cal IV digital caliper

· Fitted case




  • 1 year warranty offered by Fowler High Precision, an American company
  • Accuracy of +/-.0015"/.03mm with 0.0005"/0.01mm resolution (fractions in 1/64" increments) for precise measurements
  • Hardened stainless steel frame for corrosion resistance and long life
  • Digital, single-value readout LCD shows inch, metric, and fractional units for versatility when measuring
  • Absolute and incremental modes to take intermediate or differential measurements
  • Certified to IP 54 level of protection against dust and splashing liquid
  • $239.20
