Fowler 54-004-201 Electronic Caliper & EZ-Read Micrometer Set, 6 ...

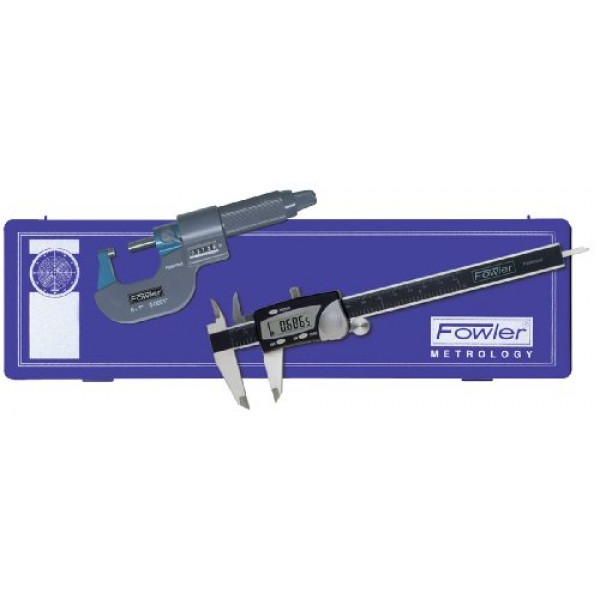

The Fowler 54-004-201 Electronic Caliper and EZ-Read Micrometer set includes a 6" digital caliper, an outside micrometer, and a fitted case. The Fowler 54-100-000 digital caliper measures 0 to 6"/0 to 150mm with 0.001"/0.02mm accuracy and 0.0005"/0.01mm resolution, and the Fowler 52-222-201 0-1" EZ-Read Digit Counter micrometer opens from 0 to 1" with 0.0002" accuracy and graduations of 0.0001".

The caliper has a hardened stainless steel frame for corrosion resistance and long life. The digital, single-value readout LCD shows inch and metric units for versatility when measuring. It has a zero setting for taking intermediate or differential measurements and direct metric/inch conversion. The knurled lock screw holds the sliding jaw in position and helps ensure a consistent measurement. The hardened stainless steel frame offers corrosion resistance and long life. This caliper is used for measuring inside dimensions (ID), outside dimensions (OD), depth, and step.

The outside micrometer has an insulated stainless steel frame for long life, and carbide measuring faces for smooth, accurate reading surfaces. It has a lock screw to hold measurements, and a friction thimble for accuracy. This micrometer is used for measuring outside dimensions.

Digital calipers are measuring instruments commonly used for inspection in manufacturing to provide the precise measurements of an object. A pair of jaws attached to a long beam with a marked scale is used to take inside, outside, and step measurements. An additional depth probe slides along the beam to take depth measurements. One jaw is fixed to the end of the scale, while the other jaw slides along it with gearless precision to take measurements. The reading is electronically generated and displayed on a digital, high-resolution screen as a single value. Digital calipers can take differential measurements that are used to determine the difference in measurements between two objects, by zeroing the display at any point along the scale. Some digital calipers can switch between standard and metric units, and some can output readings to a computer or printer for recording measurements. Compared to dial calipers, digital calipers provide measurements that are faster, easier, and more error-free, but they are more fragile mechanically and electronically, and do not resist coolant well. Vernier calipers are more durable than digital calipers because they do not have internal moving parts, but they can be more difficult to read. Digital calipers are commonly used in fields such as metalworking, mechanical engineering, machining, carpentry, and medicine.

The Fred V. Fowler Company manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.

What's in the Box?

• Fowler 54-100-000 Economy digital caliper
• Fowler 52-222-201 EZ-Read Digit Counter outside micrometer
• Fitted case
