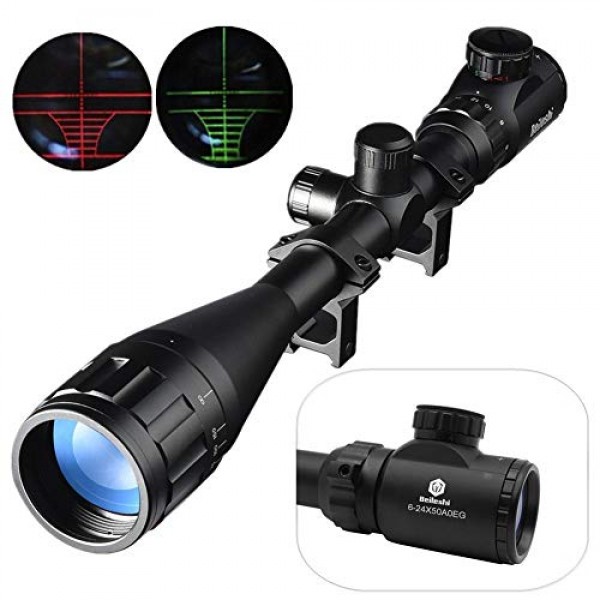

Beileshi 6-24X50mm AOEG Optics Hunting Rifle Scope Red/Green Illuminated Crosshair Gun Scope With Flip Up Scope Covers

Instructions & Attention:
Focusing: Look through scope within 3~4 inch distance from your eye to rifle scope lens. You may adjust it by loosing lock ring, rotating eye bell and screwing the lock ring.
Mounting: Rotating the scope tube for a vertical or horizontal crosshair. While tighten all screws to fix rifle scope firmly.
Bore sighting: Before you firing the target, you should make sure the vertical and horizontal crosshair should be in one point. Screw the upper and right hand wheel to adjusting the difference.
Adjusting magnification: Rotating the Power ring.
Adjusting distance: Rotating the distance ring.


Product Specifications:
Magnification:6~24X
Objective diameter:50mm/1.96inch
Eye Rifle(mm):75.94~81.53
Exit Pupil(mm):8.3~2.1
Tube diameter:25.4mm/1 inch
Length:400mm/15.75inch
Field of view (m): 3.98~16.24
Net Weight(lb):22.22

Package List :
1 x Rifle Scope
2 x Ring Mount
1 x Lens Cover
1 x Cleaning Cloth
1 x User Manual

• Magnification: 6-24X, Objective Diameter: 50mm, Tube Diameter: 25.4mm/1 inch.
• Field of view (m): 3.98~16.24, Click Value: 0~1/4 inch @ 100 yards. Eye Rifle (mm):75.94~81.53, Exit Pupil (mm):8.3~2.1.
• Illuminated Level: 5 Intensity (Red) and 5 Intensity (Green). Red or green dot crosshair with front focus eyepiece adjustment helps you shooting the target fast and accurately. Battery: CR2032 x 1 (Included).
• Eavy duty scope ring mounts for 20mm weaver dovetail rail only.

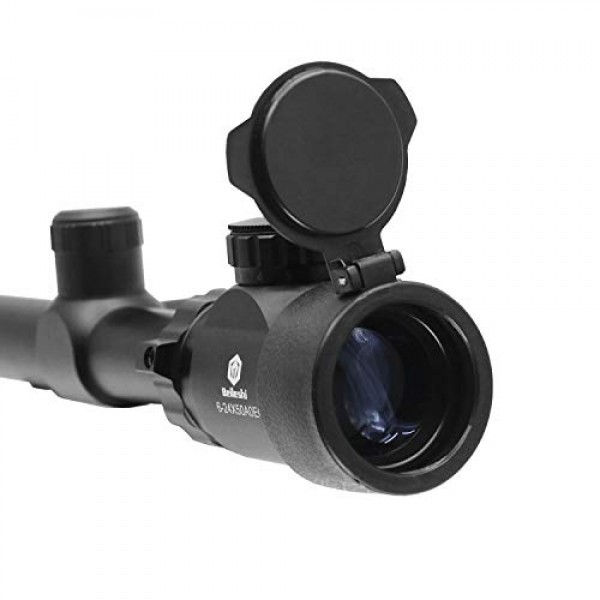

• Hard anodizing multi-coated lenses ensure a good hand feeling and avoid scratching. Lens cover included.
