Baugger Engraver Module, 20W 450nm Engraver Head for Master Series...

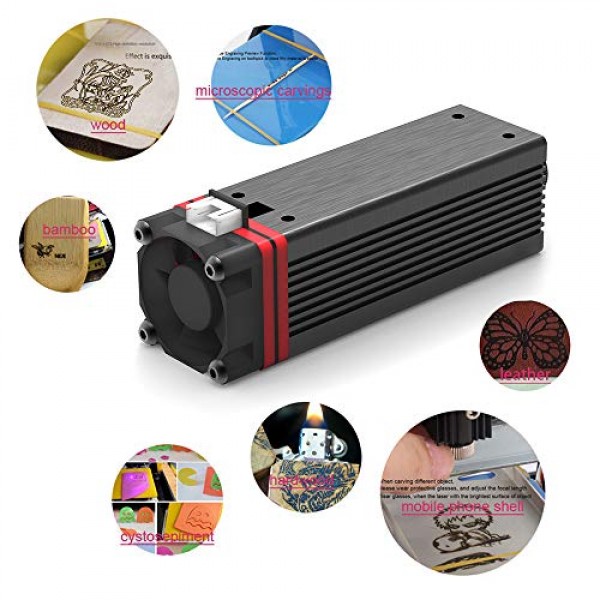

Baugger Engraver Module, 20W 450nm Engraver Head for Master Series DIY Carving Engraving Machine Engraver Accessory

This item is a necessary accessory for Master series DIY engraving machine. It is a professional laser head with high speed and high stability.


Note: It is not possible to directly engrave the metal with strong mirror reflectivity, which may cause injury to the operator or burn the laser. Master series engraving machine comes standard with 12V2A charger. If you want to use 20W laser head, you need to prepare another 12V3A power supply.（except Master 20W engraving machine ）

Specifications:
Laser Power: 3500mW / 6000mW / 7000mW / 20W (Optional)
Material: Copper + Aluminum
Light Color: Blue
Power: 20W
Wave Length: 450nm
Input power: approx. 12V 2A (without fan power)
Drive Position: Built-in
Is the Power Adjustable: PWM can be adjusted
Drive Protection: Surge protection, overvoltage protection
Line Length: 300mm
Line Length Material: Sports silicone
Control Line Installation Method: Pluggable
Interface Specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Radiator Size: 30 * 80mm
Fan Size: 30 * 10mm
Fan Speed: 15,000 rpm
Controllable Temperature: Less than 60 degrees Celsius
Focus Range: 5 ~ 50mm (best focus: 10mm from the light exit)
Item Size: Approx. 110 * 30 * 30mm / 4.33 * 1.18 * 1.18in
Item Weight: Approx. 202g / 7.14oz
Package Size: Approx. 20 * 15 * 3cm / 7.88 * 5.91 * 1.18in
Package Weight: Approx. 224g / 4.73oz

Package List:
1 * module
1 * Wrench
2 * Screw
2 * Gasket

• Professional laser head with high speed, high precision and high stability.
• Bright blue light, easy for locating when engraving.
• Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
• Laser head is more durable and stable after high temperature and long time aging.
• Suitable for Master series DIY engraving machine, easy to install.
